Sucker Rod Guide Centralizer

Date:2024-05-08 Popularity:682

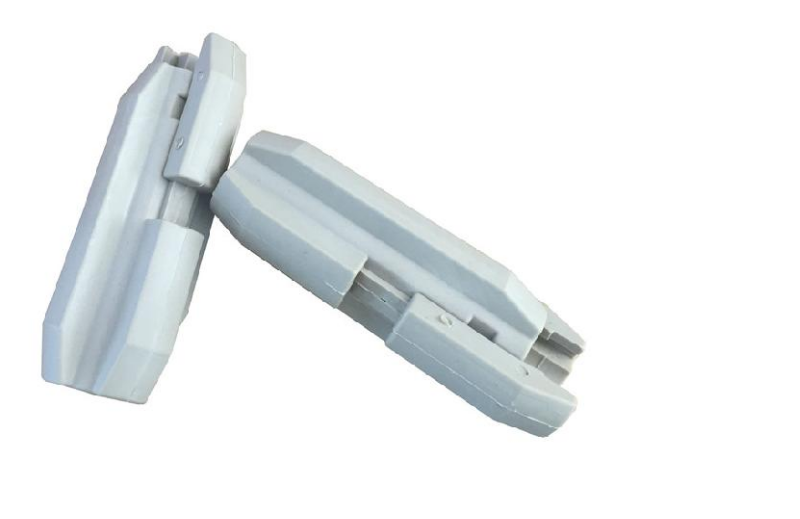

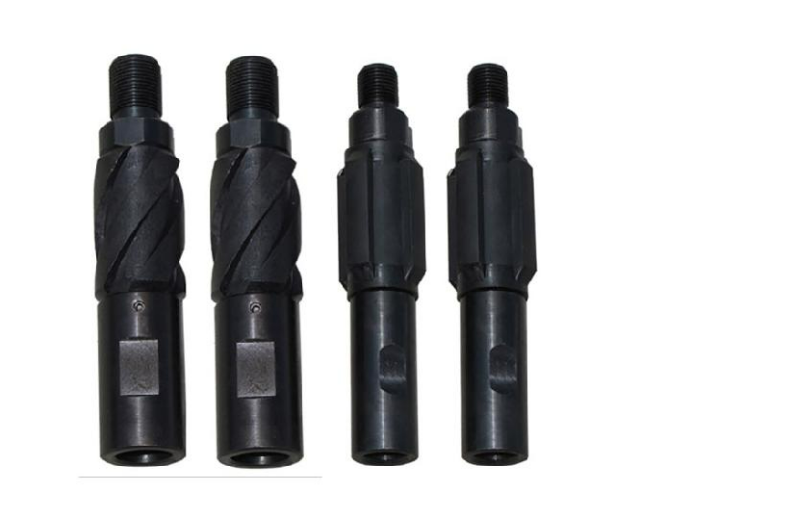

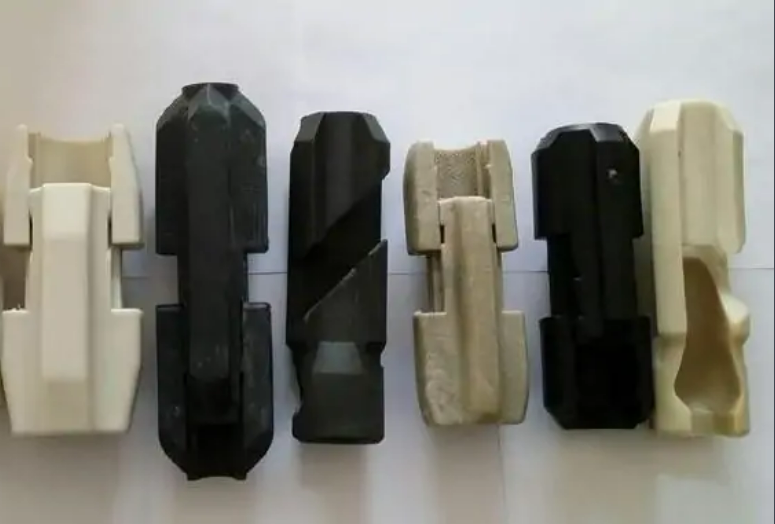

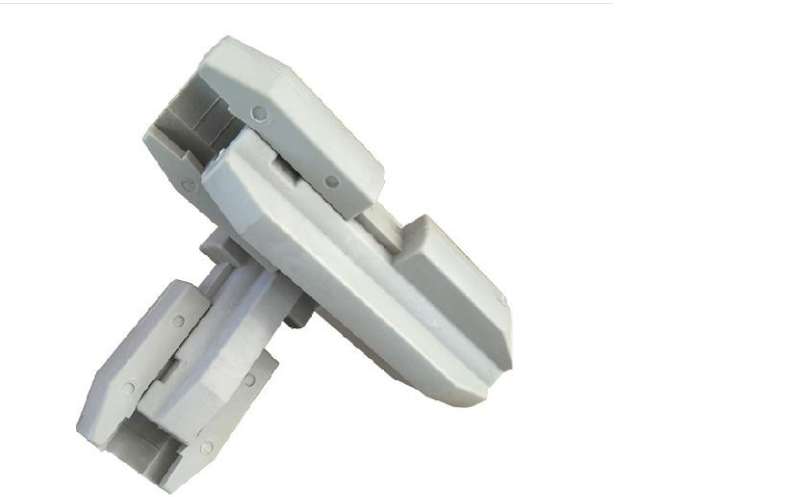

RockySea Petro Sucker Rod Guide Centralizer



In oilfield operation, pumping jack and PCP(Progressive Cavity Pumping) systems increase operational costs associated with rod&tubing friction and paraffin deposition in production tubing. RockySea Petro has developed a series of rod guides which are also called rod centralizer that are molded directly onto the rod body to control this threat. Our rod guides for pumping jack and PCP applications come in a wide range of materials and are specifically designed to meet or exceed national specifications.


Description

RockySea Petro rod centralizer centers the rod column and guides it smoothly through the tubing, avoiding metal-to-metal contact and absorbing lateral loads that cause premature wear of couplings, rods, and tubing. So that users can expect their rod and tubing units to last longer. What’s more, RockySea Petro rod guides are manufactured from different materials specifically selected to ensure their excellent performance and long life service, which are Polyamide 66, Poliphenylene Sulfide (PPS) and Polyphthalamide (PPA).



Friction between a single sucker rod and the production tubing inevitably leads to severe wear on both strings. This problem is amplified in deviated wells and in sections where the string is exposed to high compressive loads.





Data Sheet

Rod centralizer data sheet in differential material

ItemPOLYAMIDE 66 (PA 66)POLIPHENYLENE SULFIDE (PPS)POLYPHTHALAMIDE (PPA)
Max temp.℃80200165
Dynamic friction coefficient0.20.30.25
Fiberglass component0%40%33%
