Low Profile Pumping Unit

Date:2024-05-06 Popularity:166

RockySea Petro Low Profile Pumping Unit


  • Low Profile Nodding Donkey
  • Beam Balanced Pump Jack
  • RM Beam Pump(ReversMark Beam Pump)
  • Conventionalpumping unit
RockySea Petro Petro has a strong pumping unit design ability. According to International Standard and China national standard, SanJack Petro has designed and developed a series of pumping units according to market demand.


Description

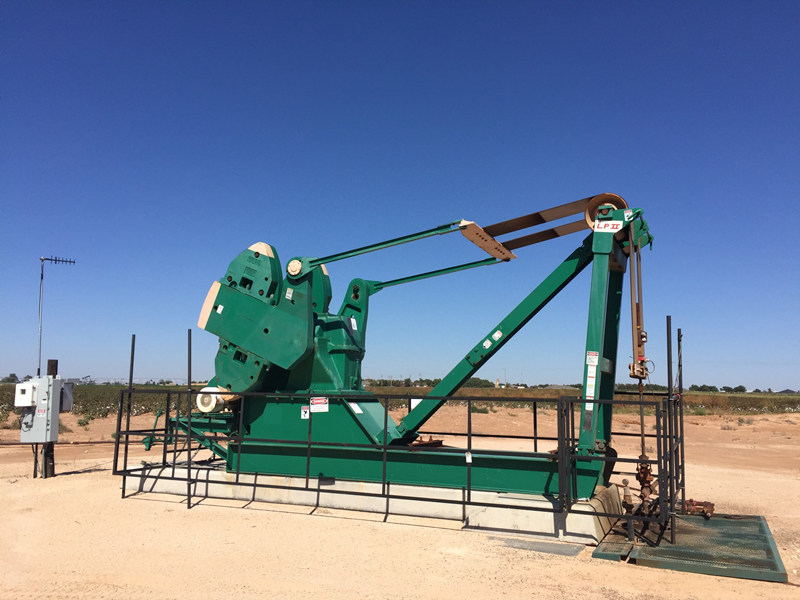

Low profile pumping unit is designed for applications where pump height is a critical concern. For locations with overhead irrigation systems, locations that are highly visible to the public, or locations with other conditions that would benefit from a low profile, the unit is an optimal solution that offers many of the same benefits as a conventional pumping unit.

The primary differences between low profile pumping units and conventional units are:
  • The carrier bar is supported by the two belts instead of a wireline bridle assembly.
  • The structure of the low profile unit uses a uniquely designed crank arm, along with a belt and roller assembly, to provide the lowest possible overhead height.

Features:
High-load dual taper bearings for the roller assemblies. High-capacity gear reducer designed far beyond Standard requirements. Large, low speed shaft for long life and increased counterbalance support. Field-serviceable gear reducer design with bolt-on cranks.

Benefits:
Delivers easy installation and maintenance. Provides long service lift of more than 25 years with proper maintenance. Reduces operating height 10-15ft.

Applications:
Wells located in agricultural areas using overhead irrigation. Wells near developed areas that would benefit from lower visibility.

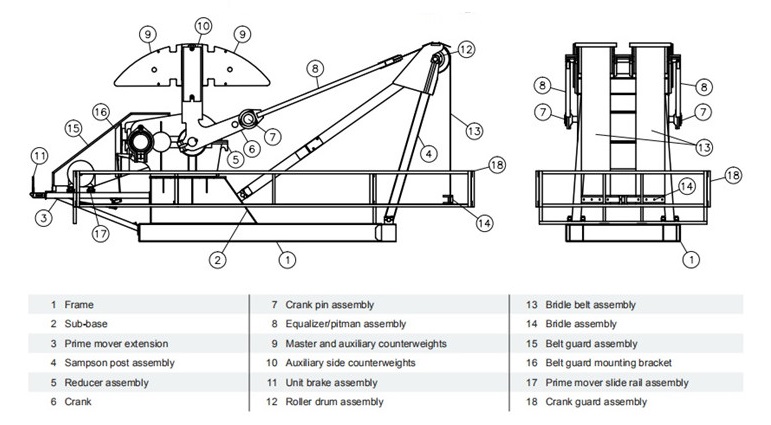

Low Profile Pumping Unit Structure:

low profile pumping units tructure diagram

1 Frame
2 Sub-base
3 Prime mover extension
4 Sampson post assembly
5 Reducer assembly
6 Crank
7 Crank pin assembly
8 Equalizedpitman assembly
9 Master and auxiliary counterweights
10 Auxiliary side counterweights
11 Unt brake assembly
12 Roller drum assembly
13 Bridle belt assembly
14 Bridle assembly
15 Belt guard assembly
16 Belt guard mounting bracket
17 Prime mover slide rai assembly
18 Crank guard assembly


Data Sheet

Model
TypeF320-256-100F320-246-86F228-246-86F160-173-74F114-173-64
Basic ParametersRated Polish Rod Capacity (lbs)25,60024,60024,60017,30017,300
Stroke Length (in)100/86/7486/74/6286/74/6274/64/5464/54/44
Max. Stroke Frequency (r/min)1212121212
Balanced TypeCrank Balanced
Crank DirectionClockwise
Gear
Reducer
Rated Torque(in.lbs)320,000320,000228,000160,00011,400
Model320D320D228D160D114D
Gear TypeDouble circular arc gear reducer or Involute gear reducer
Reducing Ratio28.80728.80728.87328.50628.355
Center Range (in)37.437.433.4629.5325.59
Center Height (in)23.2323.2319.6917.7216.73
Oil Storage quantity
(U.S. Gal)
7575423729
Lubricant20# Gear lubricant in winter,200# Gear lubricant in summer
Sheave Diameter(in)44″44″36″36″30″
Sheave groove type5C5C4C4C4C
Balance AssemblyWeight of Cranks (Lbs)3731×23309×23406×22242×22002×2
Wrist Pin bore
Positions (in)
5043433732
4337373227
3731312722
BeltLength* Width* Thickness167.52*20*0.394146.46*20*0.394146.46*20*0.394133.86*14.96*0.394116.93*14.96*0.394
(in)
Fixed Type of main baseCross Bars (Levers)
Approax. Total Weight
ex. prime mover (lbs)
4002939000367882829226032
Overall Dimensions
L*W*H (in)
328.7×88×156.3357.6×88×138.2357.6×88×138.2323.3×88.4×122.9305.9×88.2×110.9
