RockySea Petro Top PackerDatasheetOperation and maintenanceOperation1. Packer pressure test should be carried out at the pump station before running down the well2. The packer is lowered to well on the working depth. Lift up well string and turn right. Run down the well string, and when the pressure shows 80-100kn, the setting is completed and the next operation can be carried out.3. Drifting4.As long as the downhole string is lifted, the packer can be pulled out.Precautions1.Lower the tool slowly
VIEW DETAILSRockySea Petro Single Well Water Cut AnalyzerSANJACK passed ISO9001 certification in 2005 and three-system certification in 2017. The company has advanced production equipment, inspection, measurement and test equipment, which can meet the requirements of product design, development, production and service and has the only multiphase flow laboratory for Sinopec. The main products are single-screw and twin-screw oil-gas mixed pump, MFM2000 series multiphase flowmeter, LPT multiphase metering device,
VIEW DETAILSRockySea Petro Vacuum Insulation Tubing & CasingRockySea Petro Petro manufactures Vacuum Insulation Tubing & Casing in China. We have our own factory of Vacuum insulation tubing & casing. RockySea Petro Petro provide the high quality and competitive price on Vacuum insulation tubing & casing for you. Contact us now for Vacuum insulation tubing & casing quotation.Perfect quality control and strict material selection, guarantee the service life in the industry leading level.Advanced 3-level vacuum pump, automatic w
VIEW DETAILSRockySea Petro Steam Injection And Oil Recovery WellheadGeothermal wellhead & x-mas treeBlowout preventer Steam Injection and Oil Recovery Integration wellhead & x-mas treeSteam injection and oil recovery dual tubing wellhead & x-mas treeSingle column dual-well thermal recovery wellhead & x-mas treeOnshore thermal recovery wellhead & x-mas treeConventional Steam injection and oil recovery wellhead & x-mas treeRockySea Petro has more than 40 years of experience in oil and gas wellhead & x-mas tree and valve
VIEW DETAILSRockySea Petro Sinker BarSinker bars of RockySea Petro are exported to the United States, Canada, Europe, Africa and Middle East, and we establish cooperative relationships with international customers all over the world.RockySea Petro owns a strong ability about research, design and production of sinker bar with decades of manufacturing experience. RockySea Petro has been certified by ISO9001, ISO14001 and OHSAS18001.RockySea Petro adopts the principle of combining intl standards, national standards and users’ views f

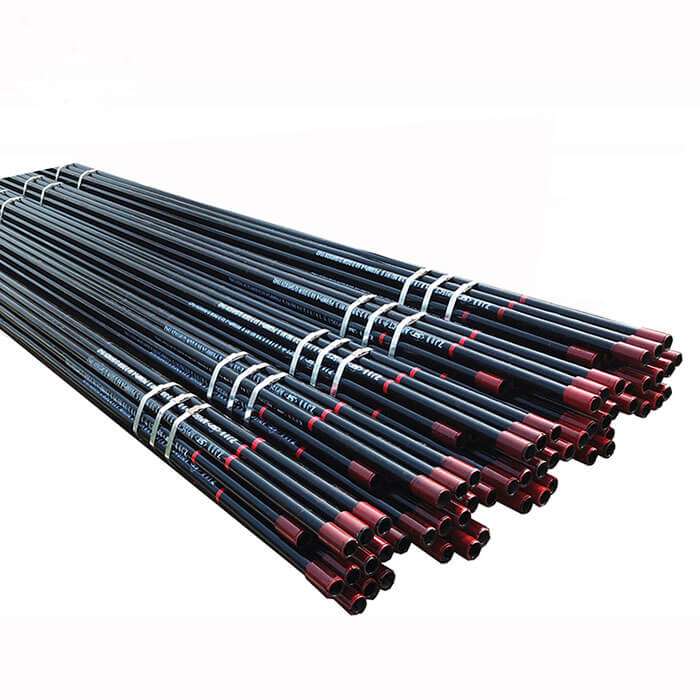

VIEW DETAILSOCTG Tubing Data Sheet from China RockySea Petro Petro Factory:
Type | Size(O.D. ) | Nominal Weight | W.T. | I.D. | Coupling | |||
in | Mm | Lbf/ft | Kg/m | mm | mm | O.D.mm | Min length mm | |
NUE
J55 L80 N80 P110 | 1.90 | 48.26 | 2.75 | 4.09 | 3.68 | 40.90 | 55.88 | 95.25 |
2 3/8 | 60.32 | 4.60 | 6.85 | 4.83 | 50.66 | 73.02 | 107.95 | |
2 7/8 | 73.02 | 6.40 | 9.52 | 5.51 | 62.00 | 88.90 | 130.18 | |
3 ½ | 88.90 | 9.20 | 13.69 | 6.45 | 76.00 | 107.95 | 142.88 | |
4 1/2 | 114.30 | 12.60 | 18.75 | 6.88 | 100.54 | 132.08 | 155.58 | |
EUE
J55 L80 N80 P110
| 1.90 | 48.26 | 2.90 | 4.32 | 3.68 | 40.90 | 63.50 | 98.42 |
2 3/8 | 60.32 | 4.70 | 6.99 | 4.83 | 50.66 | 77.80 | 123.82 | |
2 7/8 | 73.02 | 6.50 | 9.67 | 5.51 | 62.00 | 93.17 | 133.35 | |
3 ½ | 88.90 | 9.30 | 13.84 | 6.45 | 76.00 | 114.30 | 146.05 | |
4 1/2 | 114.30 | 12.75 | 18.97 | 6.88 | 100.54 | 141.30 | 158.75 |
