Inclined Well Sucker Rod Pump

Date:2024-05-06 Popularity:361

RockySea Petro Inclined Well Sucker Rod Pump

  • Full support on your customised requirement
  • The strictest quality standards on Inclined well sucker rod pump
  • 25 years Inclined well sucker rod pump manufacturing experience
RockySea Petro Petro manufactures Inclined well sucker rod pump in China. We have our own factory of Inclined well sucker rod pump. RockySea Petro Petro provide the high quality and competitive price on Inclined well sucker rod pump for you. Contact us now for Inclined well sucker rod pump quotation.

Description

Inclined well pump with forced shut-down solves the problem that the pump efficiency of conventional tubing pump is greatly reduced when pumping in inclined well. It is suitable for oil production in inclined well  where the inclination angle of the well is within 45 °.

Application
  1. Degree of inclination of oil well<45°
  2. Apply to the oil well with high gas cut.
The inclined well pump is based on the common tubular pump and its structure is optimized and manufactured. This pump not only has all the characteristics of ordinary tube pumps, but also has higher pump efficiency than ordinary tube pumps. Structure and characteristics: Inclined well pump is mainly composed of pump barrel assembly, short plunger assembly, fixed valve assembly and return spring. The plunger closed valve cover of the inclined well pump and the valve cover of the pump barrel adopt a structure with guiding ribs to limit the swing amplitude of the valve ball when it rises and fall, and reasonably solve the problem of the valve ball closing lag. At the same time, a return spring is added to the valve cover to accelerate the return of the valve ball to the seat seal and significantly improve pump efficiency.

Inclined well pump is widely used in oil exploitation, and it has the following advantages: Inclined well pumps are widely used in oil production because they reduce investment in the process. The sucker rod pumping technology is the most widely used at home and abroad.

  • Reduce production loss
    Oil recovery is safe and efficient. There are drawbacks to the inclined well. There will be friction in the process of use, friction will produce wear. Wear occurs between the tubing and casing, and between the tubing and the sucker rod. Sucker rod pumps in particular are prone to decoupling and damage due to wear. To solve this problem, RockySea Petro specially developed the inclined well downhole pump. Inclined well pump with forced shut-down solves the problem that the pump efficiency of conventional tubing pump is greatly reduced when pumping in inclined well. It is suitable for oil production in inclined well where the inclination angle of the well is within 45 °.
  • Reduce production loss
    The inclined well production method has low slope and little pumping difficulty, and almost no leakage occurs in the process of oil recovery.

Application: Apply to the oil well with high gas cut. Degree of inclination of oil well<45°

Precautions:
  • It cannot be used in oil wells with high gas content.
  • When used in sand wells, sand control devices must be equipped under the pump for sand control treatment.
  • A screen pipe needs to be connected under the pump.
  • It is strictly prohibited to use it at the inflection point and its lower part.
  • Do not use beyond the stroke.
  • The downhole steps of the inclined well pump are the same as the ordinary tubular pump. 2). Before lowering the pump, check the tubing with a gauge.


Characteristics

  1. Rotary plunger that rotates automatically while working can prevent the plunger from being lopsided worn.
  2. The special structure of traveling valve and standing valve can force the valve ball to fall back timely and accurately.


Data Sheet

ModelNominal diameter (mm)Stroke  (m)Tubing connection (in)Sucker rod connection (in)Pump constant (K)Max. OD.(mm)
25-175THQB

25-175THQBF

44.51.8~92 7/83/42.235



89.5

25-200THQB

25-200THQBF

50.82.919
25-225THQB

25-225THQBF

57.23.694
30-250THQB

30-250THQBF

63.53 1/27/84.560

108

30-275THQB

30-275THQBF

69.95.518

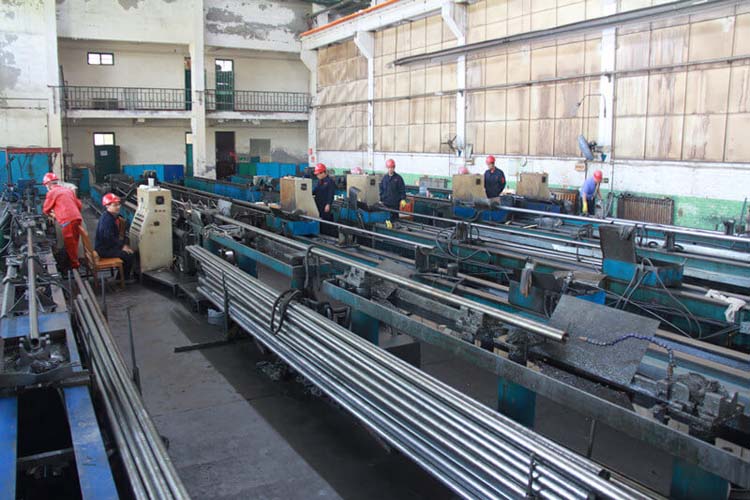

 inclined well sucker rod pump honning
